Overview:

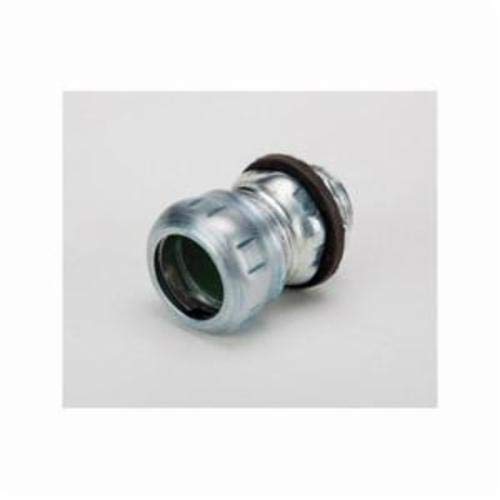

The Bridgeport 252‑SRT is a non-insulated, raintight compression connector designed for securely connecting 1-inch EMT (Electrical Metallic Tubing) to electrical boxes or enclosures. Crafted from durable steel with an electro-plated zinc finish, this fitting ensures a watertight and reliable connection, making it suitable for outdoor or damp locations.
Key Specifications:
Model: 252‑SRT
Type: Non-insulated compression connector
Trade Size: 1 inch (for 1-inch EMT conduit)
Materials: Heavy-duty steel with electro-plated zinc finish
Dimensions: Approximately 2 inches in length
Diameter: Around 1‑17/32 inches
Application: Used to join EMT conduit to electrical boxes or enclosures with a raintight (and concrete-tight) seal
Seal Features: Incorporates an internal sealing ring and knockout gasket for moisture protection
Certifications & Approvals:
UL and cULus listed
Meets NEMA FB-1 and Federal Specification A‑A‑50553 standards
RoHS compliant
ARRA and Buy American Act compliant
Country of Origin: Typically manufactured in China
Finish Quality: Zinc plating resists corrosion and ensures durability in harsh conditions
Special Notes: Sold assembled with gasket—no additional parts required, simplifying installation
