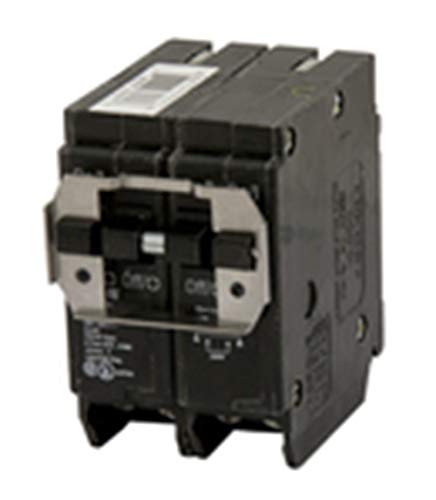

Eaton BQ215220 – 15/20A Quadplex Circuit Breaker

Overview

The Eaton BQ215220 is a quadplex circuit breaker designed for Type BR load centers. This breaker combines two separate 2-pole breakers—15A and 20A—into a single, compact unit, providing efficient circuit protection for residential and light commercial applications. Its common trip feature ensures that all connected circuits are de-energized simultaneously in the event of a fault, enhancing safety and simplifying maintenance.

Key Features

• Amperage Ratings: (1) Two-Pole 15A, (1) Two-Pole 20A

• Voltage Rating: 120/240 Volts AC

• Poles: Four-pole configuration

• Interrupting Rating: 10,000 Amps

• Trip Type: Common trip

• Mounting Type: Plug-on design for easy installation in Type BR load centers

• Wire Size Compatibility: Accepts #14–4 AWG copper or aluminum conductors

• Certifications: UL Listed, HACR rated

• Rejection Tab Feature: Prevents incorrect installation in non-compatible panels

• Dimensions: 3 inches (L) x 2 inches (W) x 3 inches (H)

• Weight: 0.9 lbs

• Warranty: Limited lifetime for residential use; 1-year limited for commercial use UI Supplies

Applications

• Residential Load Centers: Ideal for providing multiple circuit protections within a single panel slot, saving space and reducing panel clutter.

• Light Commercial Installations: Suitable for small businesses requiring efficient circuit protection without compromising on safety.

• Panel Upgrades: Perfect for retrofitting existing panels to accommodate additional circuits or higher amperage requirements.

Benefits

• Space-Saving Design: Consolidates multiple circuits into a single breaker, maximizing panel space and simplifying installations.

• Enhanced Safety: The common trip feature ensures all connected circuits are de-energized simultaneously during a fault, reducing the risk of electrical hazards.

• Ease of Installation: The plug-on design allows for quick and straightforward installation in compatible Type BR load centers.

• Versatility: Compatible with both residential and light commercial applications, offering flexibility in various settings.
