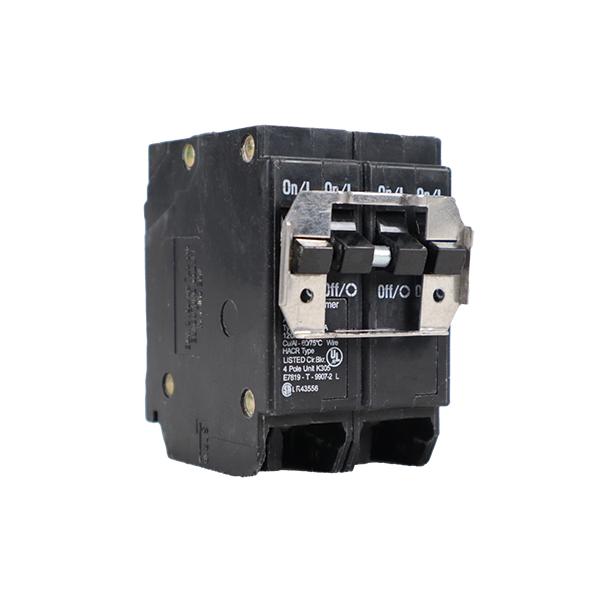

Eaton BQC215250 — Thermal‑Magnetic Quadplex Circuit Breaker

Overview:
The Eaton BQC215250 is a high-performance Type BQC 1-inch CTL (Circuit Total Limiting) plug-on circuit breaker designed for use in Type BR load centers. This quadplex breaker combines two double-pole breakers into a compact unit, providing space-efficient, reliable protection for residential and light commercial electrical systems.

Key Specifications:

• Configuration: 4-pole quadplex breaker (two independent double-pole circuits)

• Amperage Rating: Outer poles rated at 15 amps, center poles rated at 50 amps

• Voltage Rating: 120/240 volts AC single phase

• Interrupt Capacity: 10,000 amps (10 kAIC) at rated voltage

• Trip Type: Common trip — all poles disconnect simultaneously in fault conditions

• Mounting: Plug-on installation for CTL-type panels; fits two standard 1-inch panel spaces

• Wire Compatibility: Accepts 14 to 4 AWG copper or aluminum conductors

• Special Features: Rejection tab ensures only compatible breakers can be inserted into correct panels

• Certifications: UL 489 listed, HACR rated for HVAC applications

• Dimensions & Weight: Approximately 3 inches long, 2 inches wide, 3 inches high; weighs around 0.9 pounds
