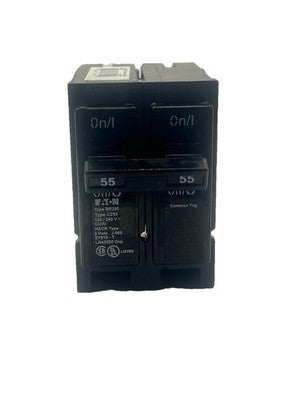

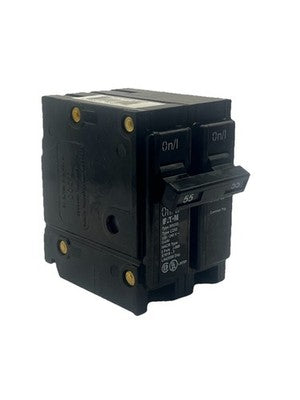

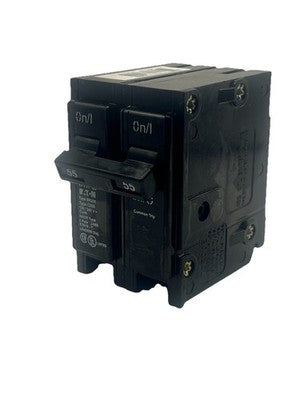

Eaton BR255 – 50 Amp, 2-Pole Circuit Breaker

Overview

The Eaton BR255 is a robust two-pole circuit breaker designed to provide reliable overload and short-circuit protection in residential and light commercial electrical panels. Part of Eaton’s popular BR Series, this breaker is engineered for easy installation and compatibility with BR load centers.

Key Features

• Amperage: 50 Amps

• Poles: 2 (double-pole configuration)

• Voltage: 120/240 VAC

• Interrupt Rating: 10,000 AIC (Ampere Interrupting Capacity)

• Trip Type: Thermal-magnetic protection for fast response to faults

• Connection Type: Plug-on design for simple mounting in Eaton BR load centers

• Conductor Range: Accepts copper or aluminum wires, typically 6–14 AWG

• Certifications: UL Listed and CSA certified

• Dimensions: Standard size for double-pole breakers, approximately 3” height × 1” width × 3” depth

Benefits

• Reliable Circuit Protection
  Safeguards circuits from overloads and short circuits to prevent damage and hazards.

• Simple Installation
  Plug-on design allows for quick, tool-free installation or replacement.

• Durable and Code Compliant
  Manufactured to meet stringent UL and CSA standards for safe operation.

• Versatile Application
  Suitable for a range of 240V appliances, equipment, and subpanels in homes and light commercial settings.

Applications

• Protection of 240V branch circuits such as HVAC systems, water heaters, and large appliances

• Residential and light commercial load centers using Eaton BR series panels

• Replacement or upgrade breaker in existing Eaton BR load centers

• Circuits requiring reliable two-pole thermal-magnetic protection
