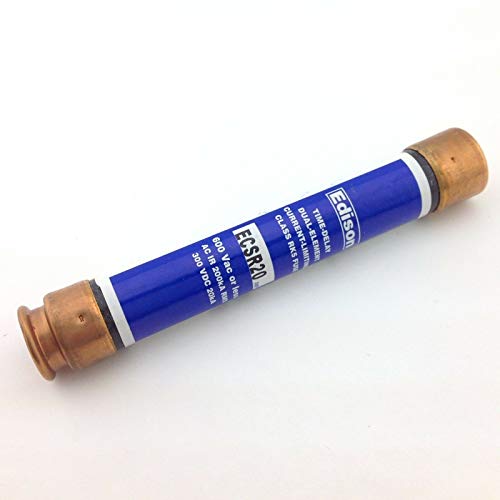

Eaton Bussmann ECSR-20 Fuse

Overview

The Eaton Bussmann ECSR-20 is a 20-amp, 600V AC, Class RK5, dual-element, time-delay, current-limiting fuse designed for overcurrent protection in industrial and commercial applications. It is part of the Edison ECSR series, known for its superior overload and cycling capabilities.

Key Specifications

• Amperage Rating: 20 A

• Voltage Rating: 600 V AC

• Interrupting Rating: 200 kAIC (RMS symmetrical)

• Response Time: 10 seconds minimum at 500% of rated current

• Fuse Type: Dual-element, time-delay

• Class: RK5

• Terminal Type: Ferrule end x ferrule end

• Dimensions: 0.81" diameter x 5.00" length (20.57 mm x 127.00 mm)

• Compliance: UL Listed Std. 248-12, CSA Certified C22.2 No. 248.12, CE Marked

Features & Benefits

• Dual-Element, Time-Delay Construction: Offers protection against both short circuits and overloads, withstanding temporary inrush currents without blowing.

• Current-Limiting: Reduces the amount of energy let through during a fault, minimizing potential damage to downstream components.

• High Interrupting Rating: Ensures safe operation even in high-fault conditions, with a 200 kAIC interrupting rating at 600 V AC.

• Compact Design: Standard size compatible with most Class RK5 fuse holders.

• Non-Indicating: Suitable for applications where visual indication of a blown fuse is not required.

Applications

• Motor Protection: Ideal for protecting motors from overloads and short circuits in industrial and commercial settings.

• Combination Starters: Used in combination motor starters to safeguard against electrical faults.

• Machinery Disconnects: Provides overcurrent protection in machinery disconnects.

• Motor Control Centers: Ensures reliable protection in motor control centers.

• Power Panelboards: Suitable for use in power panelboards requiring Class RK5 fuses.
