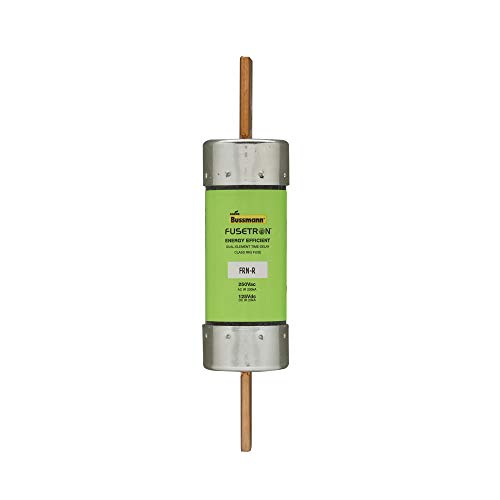

Eaton Bussmann FRN-R-110 Fuse

Overview

The Eaton Bussmann FRN-R-110 is a 110-amp, Class RK5, dual-element, time-delay, current-limiting fuse designed to provide reliable protection for motor circuits and other electrical equipment. It is part of the Fusetron FRN-R series, known for its high interrupting ratings and time-delay characteristics, making it suitable for applications where inrush currents are expected.

Key Specifications

• Amperage Rating: 110 A

• Voltage Rating: 250 V AC / 125 V DC

• Interrupting Rating:

  • 200 kA at 250 V AC

  • 20 kA at 125 V DC

• Response Time: 10 seconds minimum at 500% of rated current

• Fuse Type: Dual-element, time-delay

• Class: RK5

• Terminal Type: Knife blade (blade end x blade end)

• Body Dimensions: 1.56" diameter x 7.13" length

• Fuse Indicator: Non-indicating

• Compliance: UL 248-12, CSA C22.2 No. 248.12, CE Marked, RoHS Compliant

Features & Benefits

• Dual-Element, Time-Delay Construction: Provides protection against both short circuits and overloads, withstanding temporary inrush currents without blowing.

• Current-Limiting: Reduces the amount of energy let through during a fault, minimizing potential damage to downstream components.

• High Interrupting Rating: Ensures safe operation even in high-fault conditions, with a 200 kA interrupting rating at 250 V AC.

• Compact Design: Standard size compatible with most Class RK5 fuse holders.

• Non-Indicating: Suitable for applications where visual indication of a blown fuse is not required.

Applications

• Motor Protection: Ideal for protecting motors from overloads and short circuits in industrial and commercial settings.

• Combination Starters: Used in combination motor starters to safeguard against electrical faults.

• Machinery Disconnects: Provides overcurrent protection in machinery disconnects.

• Motor Control Centers: Ensures reliable protection in motor control centers.

• Power Panelboards: Suitable for use in power panelboards requiring Class RK5 fuses.
