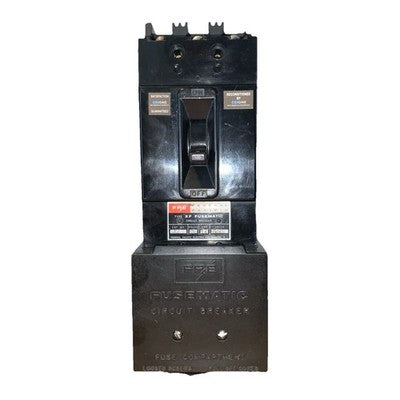

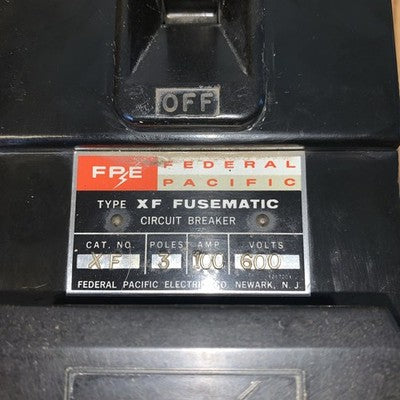

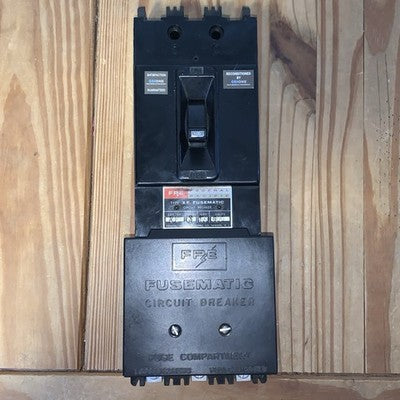

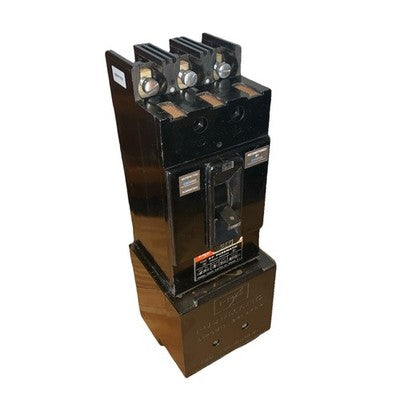

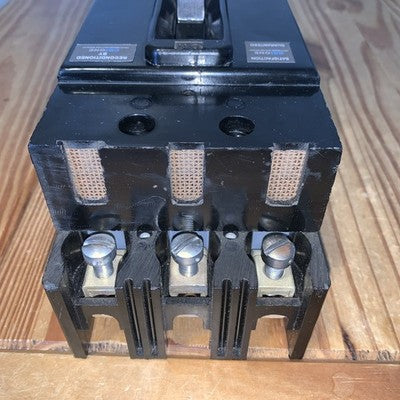

The XF‑3‑100‑600 is a reconditioned, three-pole molded-case circuit breaker from Federal Pacific Electric’s Fusematic series. Designed for three-phase applications, it delivers 100 amps of protection at up to 600 volts, making it suitable for demanding industrial environments. Each unit is thoroughly cleaned, inspected, and performance-tested to ensure reliable operation.
Key Specifications
Current Rating: 100 Amps
Voltage Rating: 600 Volts AC
Poles: 3 (Three-Phase)
Series: Type XF (Fusematic)
Interrupting Capacity: Up to 100,000 Amps (100 kAIC)
Trip Type: Thermal-Magnetic (overload and short-circuit protection)

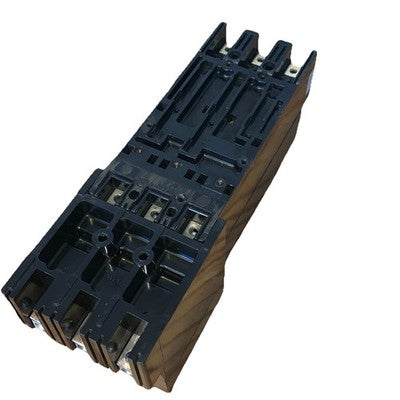

Mounting: Bolt-On

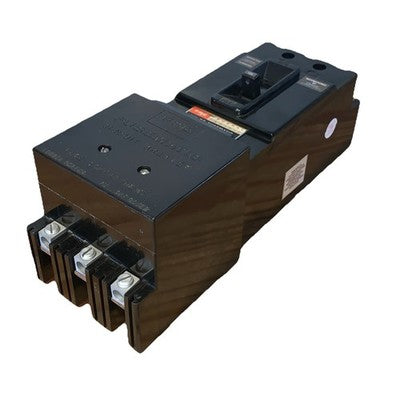

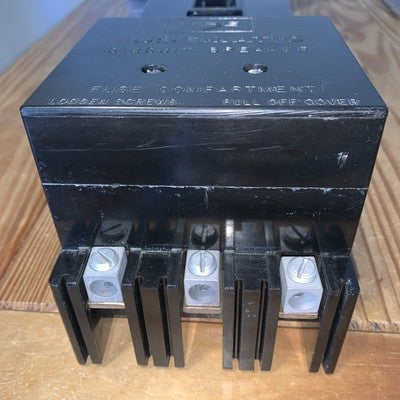

Terminals: Load-side lugs (standard)

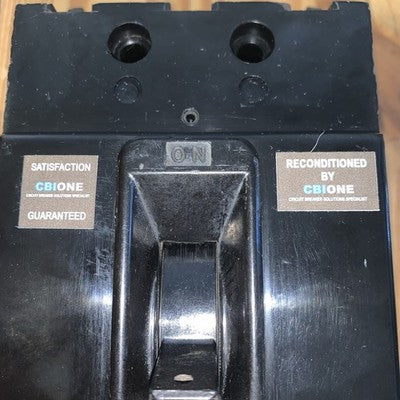

Reconditioning Details
Fully cleaned and visually inspected
Benefits
Cost-Effective Solution: A reliable alternative to costly new breakers, especially for legacy systems.
High Fault Protection: Capable of handling large fault currents with a 100 kAIC interrupt rating.
Dependable Operation: Reconditioned to perform like new, ensuring long-term protection.
Ideal for Retrofits: Matches legacy FPE panel systems where modern replacements may not fit.
Compact Design: Fits standard molded case breaker slots in existing infrastructure.
Common Applications
Industrial power distribution panels
Electrical equipment retrofits and upgrades
Replacement for failed or aging breakers in older FPE systems
Facilities requiring continued support for three-phase, 600V systems
