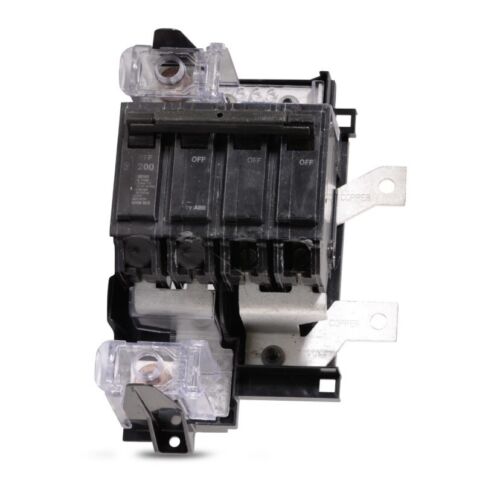

General Electric / ABB THQMV200E 200 A, 2‑Pole, 240 V Molded‑Case Circuit Breaker

Overview

The THQMV200E is a high-performance molded case circuit breaker designed by General Electric and also offered under the ABB brand. Ideal for residential and light commercial applications, this breaker delivers robust protection with reliable thermal-magnetic operation and quick installation features.

Key Features

• Voltage Rating: 240 VAC

• Amperage Rating: 200 Amps

• Number of Poles: 2 (Double-Pole)

• Phase: Single-Phase

• Interrupting Capacity: 22 kAIC at 240V

• Trip Mechanism: Thermal-magnetic trip unit providing both overload (long-time) and short-circuit (instantaneous) protection.

• Mounting Style: Plug-in design for fast and secure installation.

• Panel Compatibility: Compatible with GE PowerMark Gold and PowerMark Pro load centers (typically in the 150–225 Amp range).

• Frame Type: THQL frame.

• Conductor Ratings: Rated for 60°C / 75°C conductors.

• Certifications: UL Listed and compliant with key safety standards.

Benefits

• High Fault Protection: With a 22 kA interrupting capacity, it is capable of safely breaking high fault currents.

• Safe and Reliable: Quick-make, quick-break mechanism enhances operational safety and breaker longevity.

• Versatile Applications: Commonly used as a main circuit breaker in load centers for residential and light commercial buildings.

• Ease of Installation: Plug-in configuration reduces labor time and installation complexity.

• Trusted Brand: Manufactured by GE and supported by ABB, ensuring consistent quality and reliability.

Typical Uses

• Main breaker in 150–225 Amp load centers

• Residential service panels

• Light commercial electrical distribution systems

• Backup/replacement breaker for PowerMark systems
