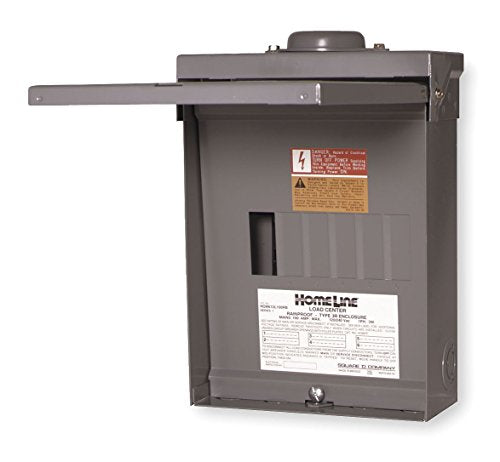

Square D Homeline HOM612L100RB – Outdoor Main Lug Load Center

Overview

The Square D HOM612L100RB is a reliable, space-efficient main lug load center designed for residential and light commercial applications. With a 100-amp rating and a NEMA 3R outdoor-rated enclosure, it provides secure, weather-resistant power distribution in compact spaces such as garages, sheds, or exterior walls.

Key Features

• Amperage: 100 Amps

• Voltage: 120/240V AC, single-phase

• Breaker Spaces: 6 spaces, accommodating up to 12 circuits with tandem breakers

• Interrupt Rating: 10,000 AIR (amps interrupting rating)

• Mounting: Surface or flush mount

• Enclosure Rating: NEMA 3R (weather-resistant for outdoor use)

• Bus Material: Tin-plated aluminum

• Feed Options: Top or bottom feed

• Wire Range: Accepts 8 AWG – 1 AWG copper or aluminum conductors

• Certifications: UL Listed, RoHS compliant, Green Premium

Benefits

• Weatherproof Protection
  Rugged NEMA 3R rated enclosure makes it ideal for outdoor installations, offering protection against rain, sleet, and snow.

• Compact & Efficient Design
  Provides up to 12 circuits using tandem breakers in a small footprint, making it perfect for subpanels or areas with space limitations.

• Flexible Installation
  Dual feed options and a reversible door simplify installation in a variety of layouts and orientations.

• Safe & Reliable
  Backed by Square D's trusted engineering, the HOM612L100RB offers dependable performance and compliance with modern safety standards.

• Installer-Friendly
  Captive screws, clearly labeled terminals, and straightforward interior design ensure quick and easy setup.

Ideal Applications

• Outdoor subpanels for garages, sheds, or workshops

• Load centers for small homes or cabins

• Temporary service installations

• Residential service upgrades or expansions
