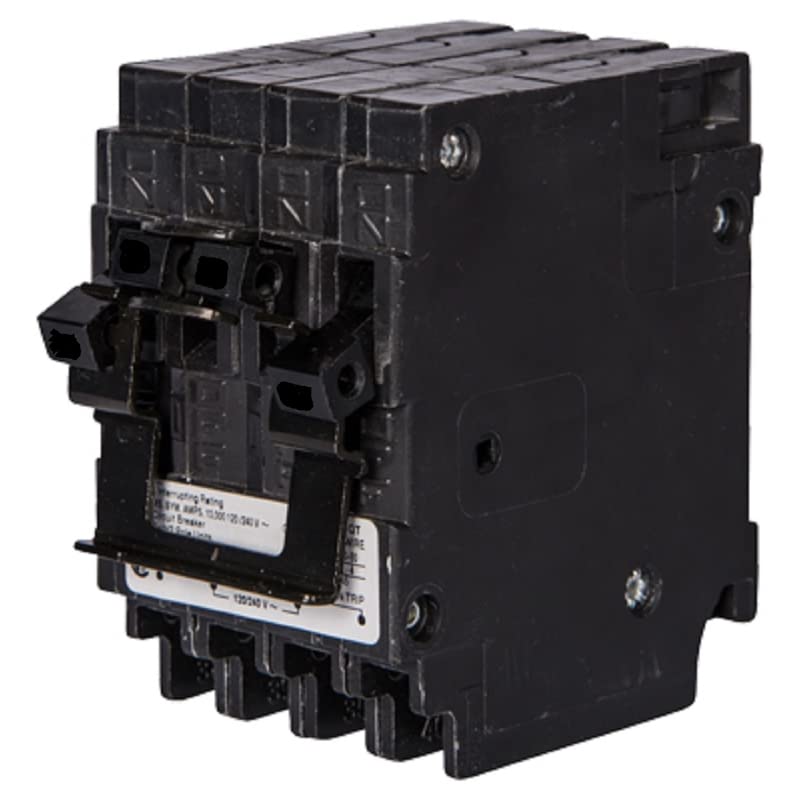

Siemens Q22050CT2 Quadplex Circuit Breaker

Overview

The Siemens Q22050CT2 is a 240V AC, 50A/20A quadplex circuit breaker designed for residential load centers. It combines two 2-pole breakers—one 50A and one 20A—into a single breaker unit, allowing for efficient use of panel space. This configuration is ideal for applications where multiple circuits are needed but panel space is limited.

Key Specifications

• Amperage Ratings:

  • 50A (2-pole)

  • 20A (2-pole)

• Voltage Rating: 240V AC

• Number of Poles: 4 (2 sets of 2-pole breakers)

• Interrupting Capacity: 10,000 AIC at 240V

• Trip Mechanism: Thermal-magnetic

• Mounting Type: Plug-on (compatible with Siemens QP load centers)

• Wire Size Compatibility:

  • Copper: 14–6 AWG

  • Aluminum: 14–6 AWG

• Frame Type: QT

• Temperature Rating: Up to 40°C (104°F)

• Dimensions: Approximately 3.12" H x 2" W x 3" D

• Certifications: UL Listed, CSA Certified

• Applications: Suitable for residential and light commercial applications requiring multiple circuits in a compact space.

Benefits

• Space Efficiency: Combines multiple circuits into a single breaker, maximizing available panel space.

• High Interrupting Capacity: Withstands fault currents up to 10,000 AIC, ensuring reliable protection.

• Versatile Compatibility: Supports both copper and aluminum conductors, accommodating various wiring needs.

• Easy Installation: Plug-on design ensures quick and secure installation in compatible load centers.

• HACR Rated: Suitable for use with heating, air conditioning, and refrigeration equipment.

Typical Applications

• Residential Load Centers: Ideal for upgrading or expanding existing electrical panels with limited space.

• Subpanels: Useful in subpanels where additional circuits are needed without adding more breakers.

• Electrical Upgrades: Perfect for homes with older panels that require modernization to meet current electrical demands.
