Overview:

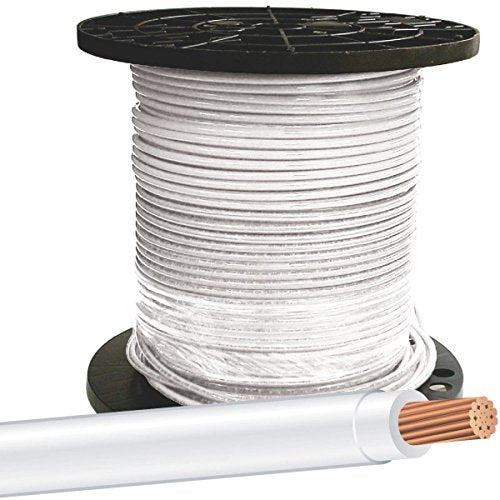

The Southwire 20489112 is a 500-foot spool of 8 AWG stranded copper THHN wire, designed for use in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications. It features Southwire's SIMpull® Technology, which allows for easier pulling without the need for pulling lubricants.
Key Specifications:
Model Number: 20489112
Conductor Material: Stranded copper
Conductor Size: 8 AWG
Length: 500 feet
Voltage Rating: 600 volts
Temperature Rating: 90°C in wet or dry locations; 75°C when exposed to oil
Insulation Material: PVC
Jacket Material: Nylon
Jacket Color: White
Jacket Thickness: 6 mils
Stranding: 19 strands
Nominal Outside Diameter: 0.21 inches
Ampacity: 55 amps at 90°C
Standards: UL 83, UL 758, CSA C22.2 No. 75, Federal Specification A-A-59544
Application: Suitable for use in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications
