Square D by Schneider Electric Homeline 15 Amp Mini Circuit Breaker, 1 Pole, 120V AC, 10kA Breaking Capacity, Plug in Mount, CAFI/CAFCI, Pigtail Neutral Residential Use (HOM115CAFIC)

Overview

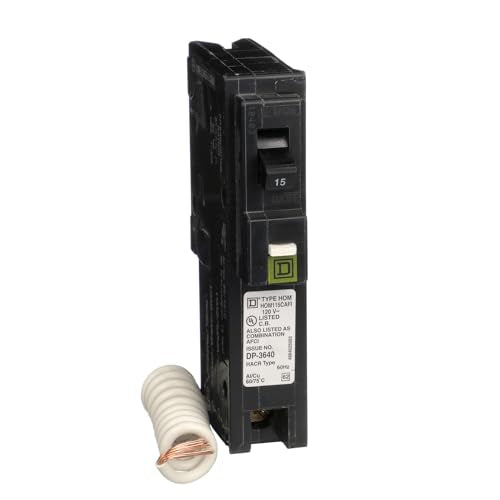

The HOM115CAFIC is a 15-amp, 1-pole Combination Arc-Fault Circuit Interrupter (CAFI) for Square D Homeline load centers. It provides arc-fault (series & parallel), overload, and short-circuit protection in one plug-in breaker with a pigtail neutral lead. Rated 10 kA AIR at 120 VAC, it's a dependable choice for residential circuits where AFCI protection is required.

Key Features

Combination AFCI protection plus standard overcurrent protection

Pigtail neutral design for Homeline panels; occupies one space (plug-in mount)

Ratings: 15 A, 1-pole, 120 VAC, 10 kA AIR interrupting capacity

Time-Saver Diagnostics trip indication to help identify last fault type

UL Listed; HACR rated

Specs at a Glance

Dimensions (H × W × D): 3.13 in × 1 in × 2.98 in

Terminals: Screw-clamp

Wire range: 14-8 AWG Cu/Al (also listed 14-10 AWG Cu)

Tightening torque: 4.0 N·m (≈35.4 lbf·in)

Operating ambient: 104 °F (40 °C)

Warranty: Lifetime (manufacturer)

Applications

Bedrooms, living rooms, and general-purpose branch circuits where AFCI is required by code

New installs or retrofit upgrades in Square D Homeline load centers
