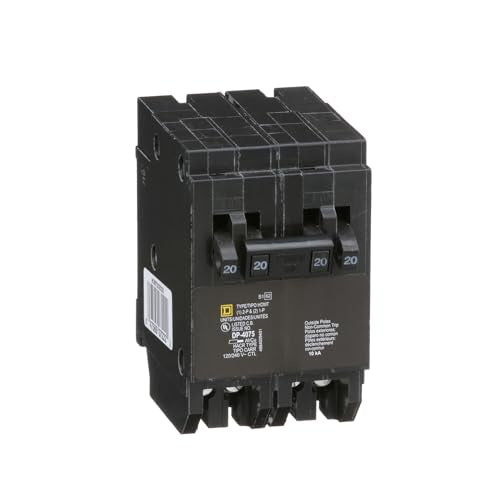

Square D Homeline HOMT2020220CP – Quad Tandem Circuit Breaker

Overview

The Square D HOMT2020220CP Quad Tandem Circuit Breaker offers a compact and efficient solution for maximizing space in electrical panels. Designed for residential load centers, this breaker combines two single-pole (1P) breakers and one double-pole (2P) breaker—all rated at 20 amps—into a single device that fits in just two breaker spaces.

Key Features & Specifications

• Type: Quad Tandem Circuit Breaker

• Amperage: 20A (x2 single-pole and x1 double-pole)

• Voltage: 120/240V AC

• Interrupt Rating: 10,000 AIR (Amps Interrupting Rating)

• Mounting: Plug-on

• Wire Range: Accepts 14–8 AWG copper or aluminum conductors

• Compatibility: For use in Homeline load centers and CSED devices

• Certifications: UL Listed, ANSI Certified, HACR Rated

• Dimensions: Approx. 3.13" H × 2" W × 2.98" D

Benefits

• Space-Saving Design: Delivers three circuits from just two breaker slots—ideal for panel expansions or tight spaces.

• Reliable Performance: Provides overload and short-circuit protection for both single- and double-pole applications.

• Easy Installation: Plug-on design allows for quick and secure mounting without the need for special tools.

• Durable Construction: Built to meet modern residential electrical safety standards, with high-performance components.

• Versatile Use: Suitable for both new installations and replacement in existing Homeline panels.

Ideal Applications

• Residential panel upgrades

• New home construction

• Circuit expansion in limited-space panels

• Load balancing and appliance circuit protection
