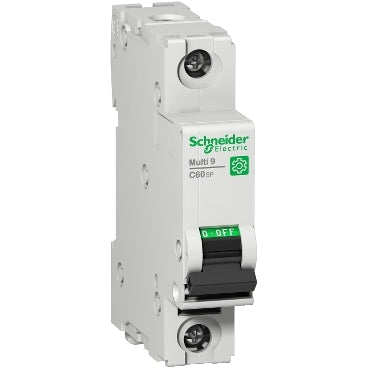

Square D by Schneider Electric Miniature Circuit Breaker (MCB), Multi9 C60SP, 1P, 2A, D Curve, 10kA (UL1077), 10kA (IEC/EN 60947-2)

Overview

The Multi9 C60SP is a low-voltage miniature circuit breaker (MCB) designed for use in industrial and residential applications. This 1-pole, 2-amp breaker features a D tripping curve and offers a short-circuit breaking capacity of up to 10kA, complying with both UL1077 and IEC/EN 60947-2 standards.

Key Features & Specifications

• Configuration: 1-pole, 2-amp breaker with D tripping curve

• Voltage Rating: 240/415 VAC

• Short-Circuit Breaking Capacity:

  • 10kA at 240 VAC (UL1077)

  • 10kA at 415 VAC (IEC/EN 60947-2)

• Tripping Curve: D curve (trips between 5 to 10 times the rated current)

• Mounting: DIN rail mountable

• Wire Size Compatibility: Accepts wire sizes from 18 AWG to 8 AWG

• Certifications: UL Listed (UL1077), IEC/EN 60947-2, CSA C22.2 No. 235

• Endurance:

  • Electrical: Up to 10,000 cycles

  • Mechanical: Up to 20,000 cycles

• Operating Temperature Range: -30°C to +70°C

• Storage Temperature Range: -40°C to +80°C

• Degree of Protection: IP20 (as per IEC/EN 60529)

Benefits

• Enhanced Protection: Provides reliable overcurrent protection, safeguarding electrical circuits from overloads and short circuits.

• Compact Design: Space-saving 1-pole configuration suitable for applications with limited panel space.

• High Breaking Capacity: Capable of withstanding high fault currents, ensuring safety in demanding environments.

• Durable Construction: Designed for long-term reliability with high electrical and mechanical endurance.

• Compliance: Meets international standards, ensuring compatibility and safety across various regions.

Typical Applications

• Residential: Protection of lighting and small appliance circuits.

• Industrial: Overcurrent protection in control panels and distribution boards.

• OEMs: Integration into equipment requiring compact and reliable circuit protection.
