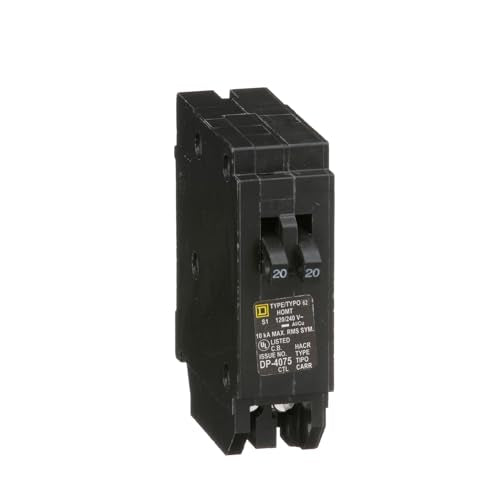

Square D by Schneider Electric Square D - HOMT2020CP Homeline Tandem Circuitbreaker
Square D by Schneider Electric Square D - HOMT2020CP Homeline Tandem Circuitbreaker
Regular price
$16.88 USD
Regular price
$52.00 USD
Sale price
$16.88 USD
Unit price
/
per
Couldn't load pickup availability
Product Overview
The Square D Homeline HOMT2020CP tandem circuit breaker is a compact, space-saving solution that provides two independent 20-amp single-pole circuits within one breaker slot. Designed for Homeline load centers, it offers dependable overload and short-circuit protection while maximizing panel space - ideal for homes and small commercial applications.
Key Features & Benefits
Dual 20A Circuits in One Slot - Expands circuit capacity without requiring additional panel space.
Thermal-Magnetic Protection - Each circuit includes overload and short-circuit protection for enhanced safety.
10,000 A Interrupting Rating (AIR) - Safely interrupts fault currents up to 10 kA at 120/240 VAC.
Easy Plug-In Installation - Fits Homeline load centers and CSED devices for quick, tool-free installation.
Copper or Aluminum Compatible - Accepts wire sizes from AWG 14 to AWG 8 for installation flexibility.
UL Listed and ANSI Certified - Meets national safety standards for residential and light commercial use.
Typical Applications
Expanding circuit capacity in residential panels nearing full capacity
Adding branch circuits for lighting, outlets, or appliances
Renovations and upgrades requiring additional power circuits
Compact electrical installations where panel space is limited
Technical Specifications
Specification Value
Poles Tandem (2 × Single Pole)
Amperage 20A / 20A
Voltage 120 / 240 VAC
Interrupting Rating 10,000 A (10 kA)
Mounting Type Plug-In
Wire Size AWG 14-8 (Copper or Aluminum)
Dimensions 3.13" H × 1.00" W × 2.98" D
Certifications UL Listed, ANSI Certified
Type Homeline Tandem Circuit Breaker
The Square D Homeline HOMT2020CP tandem circuit breaker is a compact, space-saving solution that provides two independent 20-amp single-pole circuits within one breaker slot. Designed for Homeline load centers, it offers dependable overload and short-circuit protection while maximizing panel space - ideal for homes and small commercial applications.
Key Features & Benefits
Dual 20A Circuits in One Slot - Expands circuit capacity without requiring additional panel space.
Thermal-Magnetic Protection - Each circuit includes overload and short-circuit protection for enhanced safety.
10,000 A Interrupting Rating (AIR) - Safely interrupts fault currents up to 10 kA at 120/240 VAC.
Easy Plug-In Installation - Fits Homeline load centers and CSED devices for quick, tool-free installation.
Copper or Aluminum Compatible - Accepts wire sizes from AWG 14 to AWG 8 for installation flexibility.
UL Listed and ANSI Certified - Meets national safety standards for residential and light commercial use.
Typical Applications
Expanding circuit capacity in residential panels nearing full capacity
Adding branch circuits for lighting, outlets, or appliances
Renovations and upgrades requiring additional power circuits
Compact electrical installations where panel space is limited
Technical Specifications
Specification Value
Poles Tandem (2 × Single Pole)
Amperage 20A / 20A
Voltage 120 / 240 VAC
Interrupting Rating 10,000 A (10 kA)
Mounting Type Plug-In
Wire Size AWG 14-8 (Copper or Aluminum)
Dimensions 3.13" H × 1.00" W × 2.98" D
Certifications UL Listed, ANSI Certified
Type Homeline Tandem Circuit Breaker
