Schneider Electric

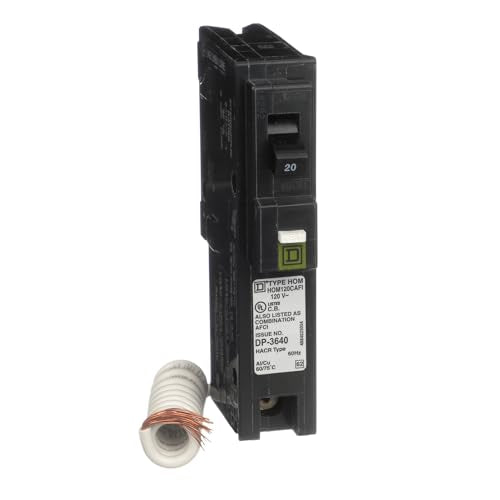

Square D - HOM120CAFIC Homeline 20 Amp Single-Pole CAFCI Circuit Breaker
Square D - HOM120CAFIC Homeline 20 Amp Single-Pole CAFCI Circuit Breaker
Regular price
$37.99 USD
Regular price
$267.00 USD
Sale price
$37.99 USD
Unit price
/
per
Couldn't load pickup availability
The HOM120CAFI is a 1-pole, 20-amp combination arc fault circuit interrupter (CAFI) designed for residential electrical protection. It seamlessly integrates overload, short-circuit, and arc-fault protection in one compact plug-in module.
Key Features & Benefits
Feature Benefit / Purpose
20 A rating, 120 V AC Ideal for branch circuits in residential installations.
Combination Arc Fault Protection (CAFI) Detects both series and parallel arcs to help prevent fire hazards.
Interrupting rating: 10 kA at 120 V AC (AIR) Can safely interrupt fault currents up to 10,000 amps.
Plug-in design for Homeline panels Easy installation - no need for additional mounting hardware.
Pigtail neutral lead included Simplifies wiring and ensures proper arc fault neutral detection.
Screw clamp terminal (accepts two wires) Supports 14 to 8 AWG copper or aluminum wiring.
Compact footprint Dimensions approx. 3.13 in (H) × 1 in (W) × 2.98 in (D) - fits in standard breaker slots.
Certifications & ratings UL listed, HACR rated, meets NEC arc fault requirements.
Applications & Use Cases
Ideal for protecting individual circuits in homes, particularly in bedrooms, living areas, or any circuit where arc-fault protection is mandated by code.
Suitable for retrofits or upgrades to existing Homeline load centers.
Provides both standard circuit protection (overload & short circuit) and arc-fault detection in a single device.
Installation & Safety Notes
Always de-energize the panel before installing.
Connect the neutral pigtail to the neutral bus as required for arc-fault detection.
Ensure wiring is within the accepted gauge and torque specifications (35.4 lbf·in, 2.5-6 mm²).
