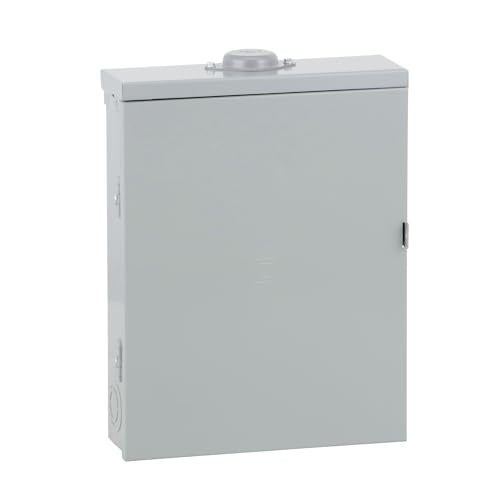

Square D HOM1224L125PRB Homeline Load Center
Square D HOM1224L125PRB Homeline Load Center
Couldn't load pickup availability
Overview
The HOM1224L125PRB is a 125-amp, 1-phase, 12-space, 24-circuit main lug load center from Square D's Homeline series. Designed for residential and light commercial applications, this panel offers flexibility, durability, and ease of installation.
Key Features & Specifications
| Feature | Specification |
|---|---|
| Amperage Rating | 125 A |
| Voltage Rating | 120/240 VAC |
| Phase | Single-phase |
| Number of Spaces | 12 |
| Number of Circuits | 24 (using tandem breakers) |
| Enclosure Type | NEMA 3R (rainproof) |
| Mounting Style | Surface mount |
| Busbar Material | Tin-plated aluminum |
| Wire Size Compatibility | 6 AWG to 1 AWG copper or 6 AWG to 2/0 AWG aluminum |
| Interrupting Capacity | 10 kA (at 240 VAC) |
| Dimensions (H x W x D) | 18.92" x 14.75" x 4.52" |
| Certifications | UL Listed (File E6294), CSA Certified |
Benefits
-
Flexible Circuit Configuration: Supports up to 24 circuits using tandem breakers, providing versatility for various electrical needs.
-
Durable Construction: The NEMA 3R enclosure ensures protection against dust, rain, and ice, making it suitable for outdoor installations.
-
Easy Installation: The surface-mount design simplifies the installation process, reducing labor time.
-
Ample Space: With 12 spaces and the ability to accommodate 24 circuits, it offers sufficient capacity for most residential applications.
-
Compliance: Meets stringent UL and CSA standards, ensuring safety and reliability.
Typical Applications
-
Residential: Ideal for new home constructions or panel upgrades.
-
Light Commercial: Suitable for small businesses requiring a reliable and flexible electrical distribution system.
-
Outdoor Installations: Perfect for installations exposed to outdoor elements, thanks to its NEMA 3R rating.
