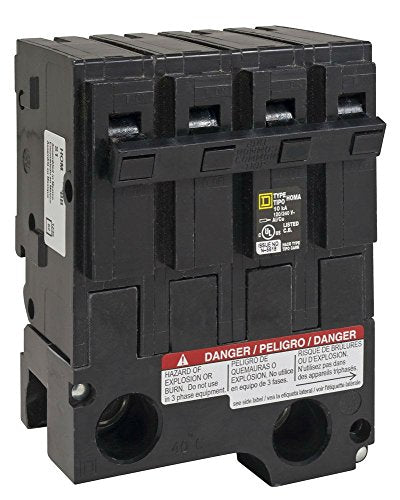

Square D HOM2175BB – 175 Amp 2-Pole 240V Circuit Breaker

Overview

The Square D HOM2175BB is a 175-amp, 2-pole circuit breaker designed for use in Square D Homeline load centers. This breaker provides reliable protection for residential electrical circuits by interrupting power during overloads or short circuits. Its compact design allows for efficient use of panel space, making it suitable for various applications.

Key Features

• Amperage Rating: 175 Amps

• Voltage Rating: 240 Volts AC

• Poles: 2

• Interrupting Rating: 10,000 Amps

• Trip Type: Thermal-magnetic

• Mounting Type: Plug-on design for easy installation in compatible panels

• Wire Size Compatibility: Accepts wire sizes from 4 AWG to 300 kcmil

• Certifications: UL Listed

• Dimensions: Approximately 5.39 inches (H) x 3.98 inches (W) x 3.13 inches (D)

• Weight: Approximately 1.36 lbs

Applications

• Residential Load Centers: Ideal for protecting circuits in homes, including those supplying HVAC systems, water heaters, and other heavy appliances.

• Subpanels: Suitable for use in subpanels where a 175-amp breaker is required.

• Electrical Upgrades: Useful in upgrading existing panels to accommodate additional circuits or higher amperage requirements.

Benefits

• Enhanced Safety: Automatically trips during overloads or short circuits, preventing potential damage to wiring and connected equipment.

• Easy Installation: The plug-on design simplifies the installation process, reducing labor time.

• Durability: Built with high-quality materials to ensure long-lasting performance.

• Space Efficiency: Compact size allows for more circuits in the same panel space.

• Compatibility: Designed specifically for Square D Homeline load centers, ensuring a secure and reliable fit.
