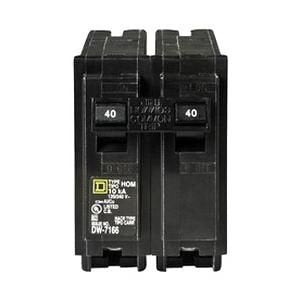

Square D HOM240CP 40 Amp 2-Pole Circuit Breaker

Overview

The Square D HOM240CP is a 40-amp, 2-pole, plug-on circuit breaker designed for use in Square D Homeline load centers. This breaker provides reliable protection for residential circuits, ensuring safety and compliance with electrical standards.

Key Specifications

• Amperage Rating: 40A

• Voltage Rating: 120/240V AC

• Interrupting Capacity: 10,000 AIC (Amps Interrupting Capacity)

• Number of Poles: 2

• Mounting Type: Plug-On

• Frame Type: 2-Space

• Trip Type: Thermal-Magnetic

• Wire Size Compatibility:

  • Copper: 14–10 AWG

  • Aluminum: 14–8 AWG

• Certifications: UL Listed

• Temperature Rating: 40°C (104°F)

• Dimensions: 3.13" H x 2.00" W x 2.98" D

• Weight: Approximately 0.7 lbs

Features & Benefits

• Plug-On Design: Facilitates easy installation into compatible Homeline load centers.

• Thermal-Magnetic Trip Mechanism: Offers reliable protection against both overloads and short circuits.

• High Interrupting Capacity: Withstands fault currents up to 10,000 AIC, ensuring system protection.

• Wide Wire Size Compatibility: Accommodates a range of wire sizes, providing flexibility in installations.

• HACR Rated: Suitable for circuits powering heating, air conditioning, and refrigeration equipment.

Applications

• Residential Load Centers: Ideal for use in Square D Homeline load centers requiring a 40A 2-pole breaker.

• Subpanels: Useful in subpanels where additional circuits are needed without adding more breakers.

• Electrical Upgrades: Perfect for homes with older panels that require modernization to meet current electrical demands.
