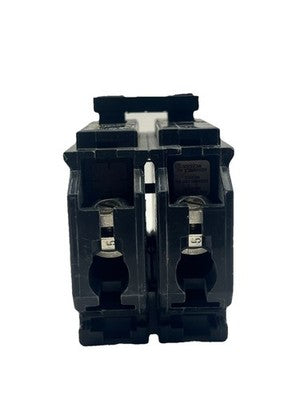

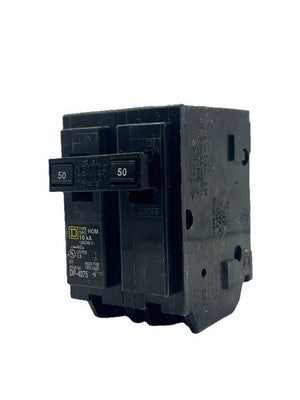

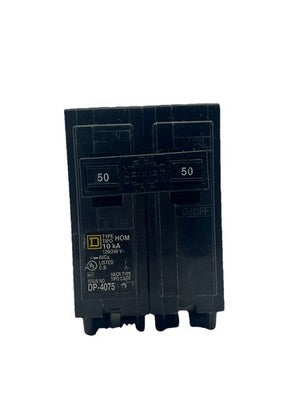

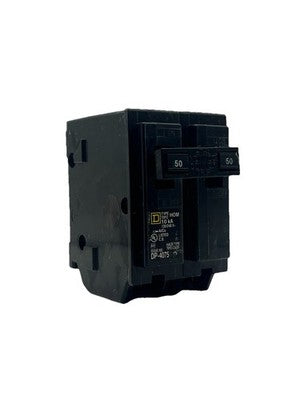

Square D HOM250CP Homeline 50‑Amp 2‑Pole Circuit Breaker

Overview

The HOM250CP is a standard two-pole, 50‑amp miniature circuit breaker from Square D’s Homeline series. Designed to deliver reliable overcurrent protection for branch circuits, it's ideally suited for residential and light commercial applications and installs via a plug-in mechanism into Homeline load centers.

Key Features & Specifications

• Amperage Rating: 50 A

• Voltage Rating: 120/240 VAC

• Configuration: 2-pole (two-phase)

• Interrupting Capacity: 10 kAIC (10,000 AIC)

• Mounting Style: Plug-on—occupies two panel spaces

• Trip Type: Standard thermal-magnetic fixed trip

• Wire Size Compatibility: AWG 8 to AWG 2 (copper or aluminum conductors)

• Connection Type: Box lug terminals

• Dimensions (Approx.): Height 3.13″ × Width 2.00″ × Depth 2.98″

• Operating Temperature: Up to 40 °C ambient

• Certifications: UL Listed, HACR (Heating, Air Conditioning & Refrigeration) rated, ANSI compliant

• Warranty: Limited lifetime warranty when installed in a Homeline load center

• Origin: Manufactured in Mexico

Benefits

• High-Capacity Protection: Supports 50 A circuits with strong interrupting capacity for safe protection of downstream wiring.

• Reliable Performance: Thermal-magnetic mechanism ensures consistent protection against both overloads and short circuits.

• Fast Installation: Plug-on design simplifies mounting and replacement in Homeline panels.

• Wiring Flexibility: Accepts both copper and aluminum conductors within standard ranges.

• Code-Compliant & Durable: UL-listed, HACR-rated, and backed by a solid warranty for peace of mind.

Typical Applications

• Branch circuits for electric dryers, ovens, EV charging, and HVAC units

• Residential and light commercial panels requiring 50 A protection

• Homeline load centers seeking consistent breaker performance with high reliability
