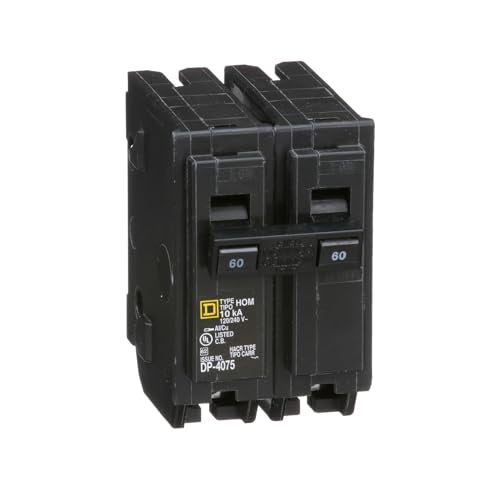

Square D HOM260CP 60-Amp 2-Pole Circuit Breaker

Overview

The Square D HOM260CP is a 60-amp, 2-pole, 120/240-volt thermal-magnetic circuit breaker designed for residential and light commercial applications. It provides reliable overcurrent protection and is compatible with Square D Homeline load centers.

Key Features & Specifications

• Amperage Rating: 60 A

• Voltage Rating: 120/240 VAC

• Number of Poles: 2

• Interrupting Capacity: 10,000 AIC (Amps Interrupting Capacity)

• Trip Type: Standard (Thermal-Magnetic)

• Mounting Type: Plug-On

• Wire Size Compatibility: Accepts 8 AWG to 2 AWG copper or aluminum wire

• Temperature Rating: 40°C (104°F)

• Dimensions: 3.13 inches (Height) x 2.0 inches (Width) x 2.98 inches (Depth)

• Certifications: UL Listed, HACR Rated

Benefits

• Reliable Protection: Offers dependable overcurrent protection for circuits, safeguarding wiring and connected devices.

• Easy Installation: The plug-on design simplifies installation in compatible Square D Homeline load centers.

• Durable Construction: Designed to withstand demanding environments, ensuring long-term reliability.

• Versatile Compatibility: Suitable for use in various residential and light commercial applications requiring 60-amp protection.

Typical Applications

• Residential: Ideal for protecting circuits supplying 240V appliances such as dryers, ranges, and HVAC systems.

• Light Commercial: Suitable for small businesses requiring reliable circuit protection.

• Load Centers: Specifically designed for use in Square D Homeline load centers, ensuring compatibility and optimal performance.
