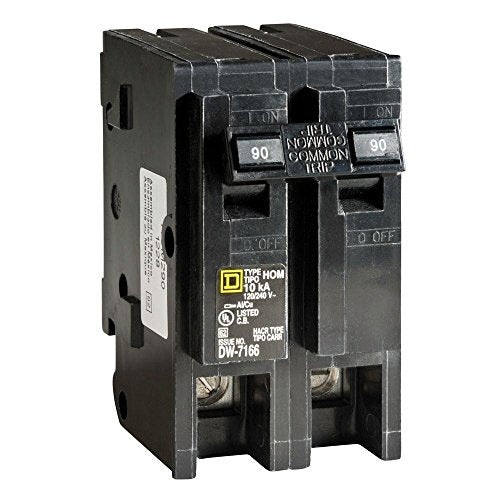

Square D HOM290CP – 90 Amp 2-Pole Circuit Breaker

Overview

The Square D HOM290CP is a 90-amp, 240-volt, 2-pole circuit breaker designed for use in Square D Homeline load centers. This breaker provides reliable protection against overloads and short circuits, ensuring the safety and integrity of your electrical system.

Key Features

• Amperage Rating: 90 Amps

• Voltage Rating: 240 Volts AC

• Poles: 2

• Interrupt Rating: 10,000 Amps (10 kAIC)

• Connection Type: Plug-on (1-inch Type HOM)

• Trip Mechanism: Thermal-magnetic (Long-Time and Instantaneous)

• Wire Range: Accepts 4 AWG to 2/0 AWG copper or aluminum conductors

• Mounting Style: Plug-in design for easy installation

• Certifications: UL Listed, CSA Certified, HACR Rated

• Temperature Rating: Suitable for use in ambient temperatures up to 40°C

Benefits

• Enhanced Safety: Provides reliable protection against overloads and short circuits, reducing the risk of electrical fires.

• Easy Installation: The plug-on design allows for quick and straightforward installation in compatible Homeline load centers.

• Durability: Built with high-quality materials to ensure long-lasting performance and reliability.

• Versatility: Suitable for a wide range of residential and light commercial applications requiring 90-amp protection.

Applications

• Residential: Ideal for providing protection to large appliances and equipment requiring 90-amp circuits.

• Light Commercial: Suitable for small businesses needing reliable circuit protection for their electrical systems.

• Panel Upgrades: Perfect for upgrading existing panels to accommodate higher amperage requirements.
