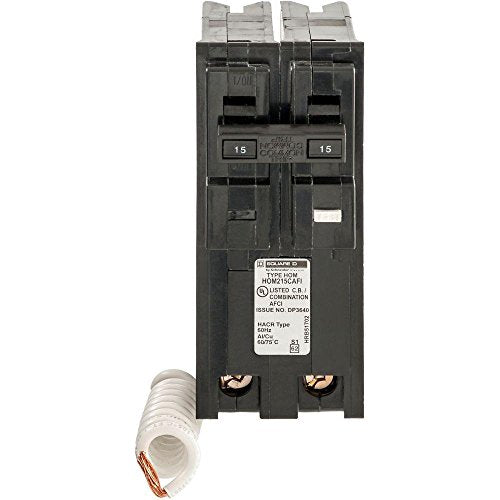

Square D Homeline HOM215CAFI – 2‑Pole 15 A Combination Arc-Fault Circuit Interrupter (AFCI) Breaker

Overview

The HOM215CAFI is a high-performance, combination arc-fault circuit interrupter (AFCI) breaker in Square D's Homeline series. Designed for fast installation and reliable protection in residential electrical systems, it guards against overloads, short circuits, and both parallel and series arc faults to ensure enhanced safety and code compliance.

Key Features

• Type: Homeline Miniature Plug-In AFCI Breaker

• Configuration: 2‑pole, 15 amp, working at 120/240 V AC

• Protection Functions: Thermal-magnetic trip, plus combination arc-fault detection for both parallel and series arcs

• Interrupt Rating: 10 kAIC (kiloamps interrupting capacity)

• Mounting Style: Plug-in for compatible Homeline load centers

• Neutral: Built-in pigtail neutral for proper circuit wiring

• Wire Connection: Clamp terminals accept 14–8 AWG copper or aluminum wires (single conductor) and 14–10 AWG copper when using two conductors

• Trip Functions: Long-time (overload) and instantaneous (short-circuit) protection

• Dimensions: Approximately 3.13″ high × 2″ wide × 2.98″ deep

• Standards & Ratings: HACR rated, UL listed, meets NEC arc-fault requirements, and part of the "Green Premium" product line for sustainability

Benefits

• Enhanced Protection
  Offers comprehensive safety by combining overload, short-circuit, and arc-fault detection in a single device.

• Ease of Installation
  The plug-in design, paired with the pigtail neutral, ensures quick, secure hookup during panel installation or upgrades.

• Panel Compatibility
  Designed specifically for Homeline panels—ensures a seamless fit without the complexity of retrofitting.

• Durable & Code-Compliant
  Backed by trusted Square D engineering and compliant with UL standards and NEC arc-fault requirements.

• Compact yet Capable
  Its slim, efficient design delivers full protection without occupying unnecessary panel space.

Typical Applications

• Protecting bedroom circuits, kitchens, living rooms, and other living spaces that require AFCI protection under current electrical code.

• Panel upgrades or remodels where safety and modern standards are a priority.

• Residential projects that must meet NEC AFCI requirements for new or replacement wiring.
