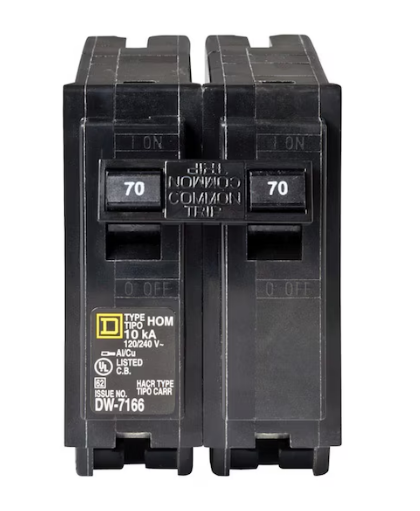

Square D Homeline HOM270CP 2‑Pole Miniature Circuit Breaker (70 A, 120/240 VAC)

Overview

The Square D Homeline HOM270CP is a reliable and efficient 2‑pole plug-in circuit breaker designed for residential and light commercial use. Engineered to provide consistent protection against overloads and short circuits, this breaker is compatible with Homeline load centers and combination service entrance devices (CSEDs). It offers a compact design, easy installation, and dependable performance.

Key Specifications

• Amperage Rating: 70 Amps

• Voltage Rating: 120/240 Volts AC

• Number of Poles: 2‑Pole, common trip

• Interrupting Capacity: 10,000 Amps (10 kAIC)

• Mounting Type: Plug‑in (for use in Homeline load centers)

• Conductor Size Range: 8 AWG to 2 AWG (copper or aluminum)

• Terminal Type: Box lug or clamp terminal

• Trip Type: Thermal-magnetic

• Temperature Rating: 40°C (104°F)

• Dimensions (W x D x H): Approx. 2" x 2.98" x 3.13"

• Certifications: UL Listed, HACR Rated

• Warranty: Limited Lifetime Warranty

Features & Benefits

• Reliable Protection: Guards against overloads and short circuits with thermal-magnetic trip technology.

• Quick Installation: Plug-in design simplifies setup in compatible Homeline panels.

• Wide Wire Compatibility: Accepts both copper and aluminum conductors for flexible wiring options.

• Compact Design: Fits seamlessly into standard panel spaces without compromising safety or performance.

• Code Compliant: Meets national safety and performance standards.

Common Applications

• Residential main or sub-panel installations

• General-purpose branch circuit protection

• HVAC systems, water heaters, and other 240V appliances

• New construction, panel upgrades, or breaker replacements
