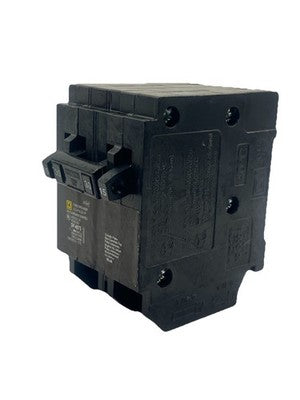

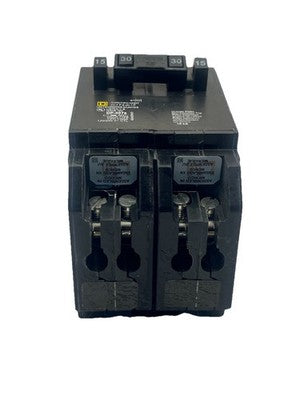

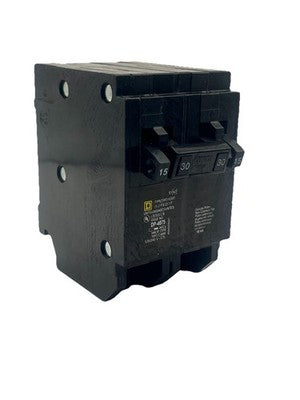

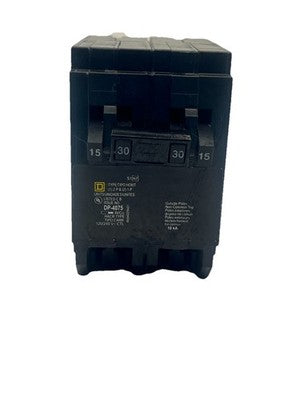

The Square D Homeline HOMT1515230 is a quad tandem circuit breaker designed to provide efficient circuit protection in residential and light commercial applications. This breaker combines two single-pole 15A breakers and one double-pole 30A breaker into a single unit, allowing for increased circuit capacity in limited panel spaces.
Key Specifications
Configuration: Quad tandem breaker (2 single-pole 15A, 1 double-pole 30A)
Voltage Rating: 120/240 VAC
Amperage Ratings:
(2) 15A single-pole
(1) 30A double-pole
Interrupting Rating: 10 kAIC
Wire Range: 14–8 AWG copper or aluminum
Mounting Type: Plug-in
Dimensions: 3.13" (H) x 2.00" (W) x 2.98" (D)
Certifications: UL Listed
Country of Origin: Mexico
Features & Benefits
Space-Saving Design: Combines three breakers into a single unit, maximizing panel space and allowing for more circuits in a compact area.
High Interrupting Rating: With a 10 kAIC rating, it ensures reliable protection against short circuits and overloads.
Versatile Wire Compatibility: Accommodates 14–8 AWG copper or aluminum wire, providing flexibility in wiring options.
Easy Installation: Designed for plug-in mounting, simplifying the installation process in compatible Homeline load centers.
HACR Rated: Suitable for use with heating, air conditioning, and refrigeration equipment.
Applications
Residential Electrical Systems: Ideal for providing additional circuits in residential panels where space is limited.
Light Commercial Applications: Suitable for small commercial setups requiring efficient circuit protection.
HVAC Equipment: HACR rating makes it compatible with heating, air conditioning, and refrigeration systems.
