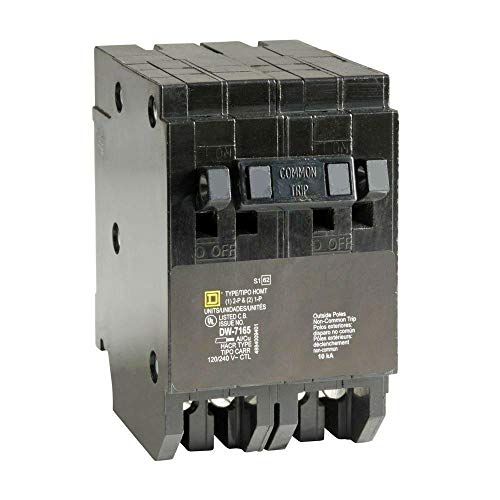

Square D Homeline HOMT1515240 Quad Tandem Circuit Breaker

Overview

The Square D Homeline HOMT1515240 is a quad tandem circuit breaker designed to provide efficient circuit protection in residential and light commercial electrical systems. This breaker combines two single-pole 15A breakers and one double-pole 40A breaker into a single unit, allowing for increased circuit capacity in limited panel spaces.

Key Specifications

• Configuration: Quad tandem breaker (2 single-pole 15A, 1 double-pole 40A)

• Voltage Rating: 120/240 VAC

• Amperage Ratings:

  • (2) 15A single-pole

  • (1) 40A double-pole

• Interrupting Rating: 10 kAIC

• Wire Range:

  • 2-Pole 40A: 14–6 AWG copper or 12–6 AWG aluminum

  • 1-Pole 15A: 14–8 AWG copper or aluminum

• Mounting Type: Plug-in

• Dimensions: 3.13" (H) x 2.00" (W) x 2.98" (D)

• Certifications: UL Listed

• Country of Origin: Mexico

Features & Benefits

• Space-Saving Design: Combines three breakers into a single unit, maximizing panel space and allowing for more circuits in a compact area.

• High Interrupting Rating: With a 10 kAIC rating, it ensures reliable protection against short circuits and overloads.

• Versatile Wire Compatibility: Accommodates a wide range of wire sizes, providing flexibility in wiring configurations.

• Easy Installation: Designed for plug-in mounting, simplifying the installation process in compatible Homeline load centers.

• HACR Rated: Suitable for use with heating, air conditioning, and refrigeration equipment.

Applications

• Residential Electrical Systems: Ideal for providing additional circuits in residential panels where space is limited.

• Light Commercial Applications: Suitable for small commercial setups requiring efficient circuit protection.

• HVAC Equipment: HACR rating makes it compatible with heating, air conditioning, and refrigeration systems.
