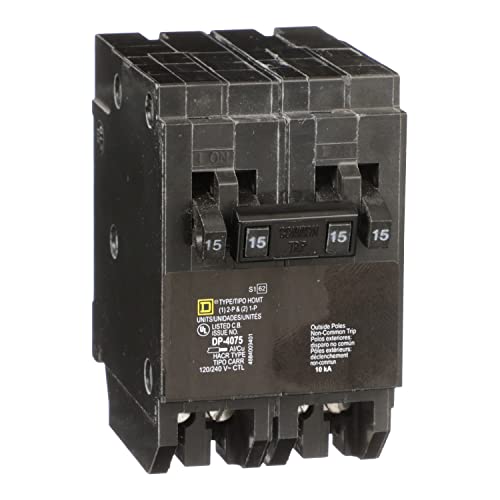

Square D HOMT1515215CP Tandem Circuit Breaker (Homeline Series)
Square D HOMT1515215CP Tandem Circuit Breaker (Homeline Series)
Couldn't load pickup availability
Overview
The HOMT1515215CP is a quad tandem circuit breaker from Square D’s Homeline series, designed to maximize panel space by combining multiple circuits into a single breaker. It features:
-
Two 1-pole 15A breakers for 120V circuits
-
One 2-pole 15A breaker for 240V circuits
This configuration allows for efficient use of panel slots, making it ideal for residential applications where space is limited.
Key Specifications
| Feature | Specification |
|---|---|
| Amperage Rating | 15A per pole |
| Voltage Rating | 120/240V AC |
| Interrupting Capacity | 10,000 AIC (Amps Interrupting Capacity) |
| Number of Poles | 4 (2 single-pole, 1 double-pole) |
| Mounting Type | Plug-on (compatible with Square D Homeline load centers) |
| Wire Size Compatibility | 14 AWG to 8 AWG (copper or aluminum) |
| Dimensions | Height: 3.13", Width: 2.00", Depth: 2.98" |
| Certifications | UL Listed, HACR Rated |
| Country of Origin | United States |
Benefits
-
Space Efficiency: Combines multiple circuits into a single breaker, freeing up panel space for additional circuits.
-
High Interrupting Capacity: With a 10kAIC rating, it provides reliable protection against short circuits and overloads.
-
Versatile Wiring Options: Supports both copper and aluminum conductors, accommodating various wiring needs.
-
Easy Installation: The plug-on design ensures quick and secure installation in compatible load centers.
-
HACR Rated: Suitable for use with heating, air conditioning, and refrigeration equipment.
Typical Applications
-
Residential Load Centers: Ideal for upgrading or expanding existing electrical panels with limited space.
-
Subpanels: Useful in subpanels where additional circuits are needed without adding more breakers.
-
Electrical Upgrades: Perfect for homes with older panels that require modernization to meet current electrical demands.
