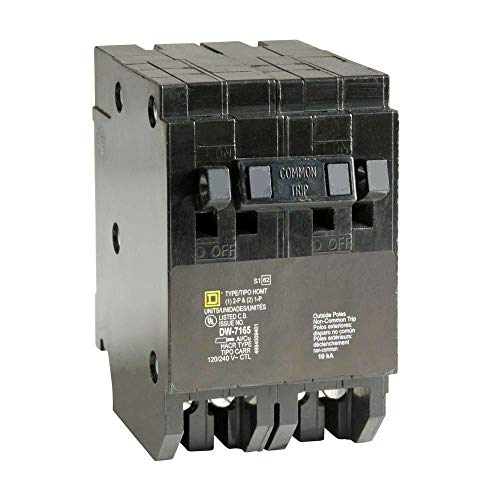

Square D HOMT1515225 Homeline Quad‑Tandem Miniature Circuit Breaker

Overview

The HOMT1515225 is a compact, quad-tandem miniature circuit breaker from Square D’s Homeline series. Designed to maximize space within a load center, this breaker combines two single-pole 15-amp breakers and one two-pole 25-amp breaker (common trip) into a single unit that fits in just two panel spaces. It’s ideal for residential or light commercial applications requiring multiple circuits in limited space.

Key Features & Specifications

• Configuration:

  • Two 1-pole breakers rated at 15 amps

  • One 2-pole breaker rated at 25 amps (with common internal trip)

• Voltage Rating: 120/240 VAC

• Interrupting Rating: 10,000 AIC (10 kA)

• Mounting Style: Plug-on (for Homeline load centers)

• Bus Connection Type: Tandem/Quad-style, fits two slots

• Wire Range:

  • Copper: #14–#8 AWG

  • Aluminum: #12–#8 AWG

• Terminal Type: Screw-type pressure plate lugs

• Dimensions (Approx.):

  • Height: 3.13 inches

  • Width: 2.00 inches

  • Depth: 2.98 inches

• Certifications:

  • UL Listed

  • CSA Certified

  • HACR rated (suitable for HVAC applications)

Benefits

• Maximized Panel Space: Supports three circuits in just two slots, reducing the need for larger load centers.

• Safe and Reliable: Built-in thermal-magnetic protection guards against overloads and short circuits.

• Common Trip Safety: Ensures both legs of the 25A two-pole breaker trip together during a fault, enhancing protection.

• Flexible Wiring: Compatible with both copper and aluminum conductors.

• Easy Installation: Simple plug-on design speeds up retrofit and new installations.

Typical Applications

• Residential load centers with limited breaker space

• Subpanels requiring multiple branch circuits

• HVAC or appliance loads needing two-pole breakers alongside standard 15A lighting or receptacle circuits

• Projects needing compact, code-compliant overcurrent protection

Compatibility Note

Some Homeline load centers limit where tandem or quad breakers like the HOMT1515225 can be installed. Always check the panel label or documentation to confirm acceptable breaker positions before installation.
