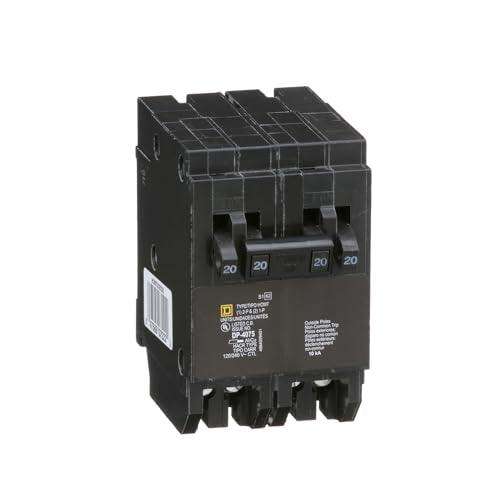

Square D HOMT2020220CP Homeline Quad‑Tandem Miniature Circuit Breaker
Square D HOMT2020220CP Homeline Quad‑Tandem Miniature Circuit Breaker
Couldn't load pickup availability
Overview
The HOMT2020220CP is a space-saving quad-tandem circuit breaker from the Homeline series. This compact unit combines two single-pole 20 A breakers and one two-pole 20 A breaker with common trip, all within just two panel spaces. It’s designed for efficient panel use, making it ideal for residential electrical systems that require multiple circuits in limited space.
Key Features & Specifications
| Feature | Specification |
|---|---|
| Configuration | 2 × single-pole 20 A breakers + 1 × two-pole 20 A breaker (common trip) |
| Voltage Rating | 120/240 VAC |
| Interrupting Capacity | 10,000 AIC (10 kA) |
| Mounting Style | Plug‑in (fits Homeline load centers) |
| Wire Compatibility | #14–#8 AWG copper or aluminum |
| Dimensions (Approx.) | Height: 3.13" / Width: 2.00" / Depth: 2.98" |
| Certifications | UL Listed, ANSI compliant, HACR rated |
| Environmental Rating | RoHS compliant, Mercury-free, meets Prop 65 (CA standards) |
Benefits
-
Maximizes Panel Capacity: Supports three breaker circuits in two panel slots, perfect for compact electrical layouts.
-
Enhanced Safety with Common Trip: Both legs of the two-pole breaker trip together to improve fault protection.
-
Efficient Installation: Plug‑in design enables quick installation compatible with Homeline panels.
-
Versatile Wiring: Supports both copper and aluminum wiring for flexible use.
-
Reliable & Code-Compliant: Built to UL and ANSI standards, HACR rated for HVAC circuits, environmentally safe with RoHS compliance.
Typical Applications
-
Residential load centers with limited breaker space
-
Subpanels needing multiple branch circuits
-
HVAC or dedicated 240 V equipment combined with standard circuits in one compact breaker
-
Retrofit projects where maximizing panel capability is essential
Installer Insight
This breaker can help free up space in crowded panels by replacing multiple breakers with a single quad-tandem unit, but ensure proper load distribution when relocating circuits.
