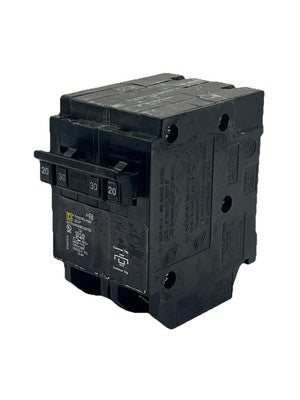

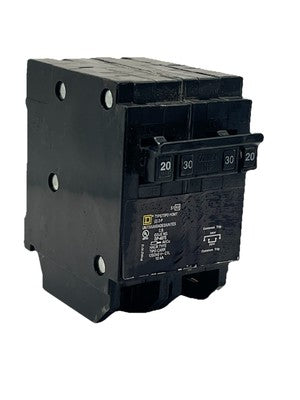

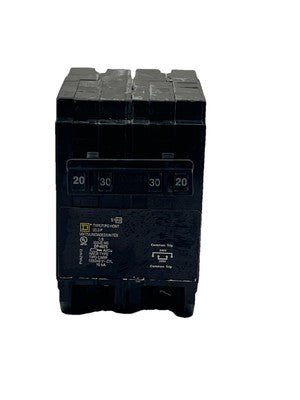

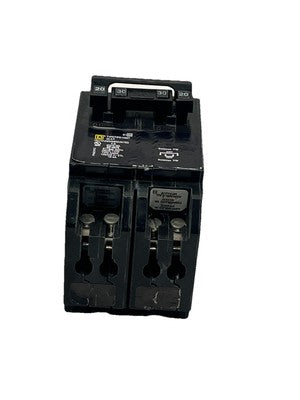

Square D HOMT220230 Quad Tandem Circuit Breaker

Overview

The Square D HOMT220230 is a quad tandem circuit breaker designed for use in Square D Homeline load centers. This breaker combines two 2-pole breakers into a single unit, providing both 20-amp and 30-amp protection in a compact design. It is ideal for applications where multiple circuits are needed but panel space is limited.

Key Specifications

• Amperage Ratings:

  • 20A (2-pole)

  • 30A (2-pole)

• Voltage Rating: 120/240V AC

• Number of Poles: 4 (2 sets of 2-pole breakers)

• Interrupting Capacity: 10,000 AIC at 240V

• Trip Mechanism: Thermal-Magnetic

• Mounting Type: Plug-On (compatible with Square D Homeline load centers)

• Wire Size Compatibility:

  • Copper: 14–8 AWG

  • Aluminum: 14–8 AWG

• Frame Type: HOM

• Temperature Rating: Up to 40°C (104°F)

• Certifications: UL Listed, HACR Rated

• Dimensions: 3.13" H x 1.97" W x 3.23" D

Features & Benefits

• Space-Saving Design: Combines two 2-pole breakers into a single unit, maximizing available panel space.

• High Interrupting Capacity: Withstands fault currents up to 10,000 AIC, ensuring reliable protection.

• Thermal-Magnetic Protection: Offers both overload and short-circuit protection, enhancing system reliability.

• Versatile Compatibility: Supports a wide range of wire sizes, accommodating various installation requirements.

• HACR Rated: Suitable for circuits powering heating, air conditioning, and refrigeration equipment.

Applications

• Residential Load Centers: Ideal for use in Square D Homeline load centers requiring a 20A and 30A 2-pole breaker combination.

• Subpanels: Useful in subpanels where additional circuits are needed without adding more breakers.

• Electrical Upgrades: Perfect for homes with older panels that require modernization to meet current electrical demands.
